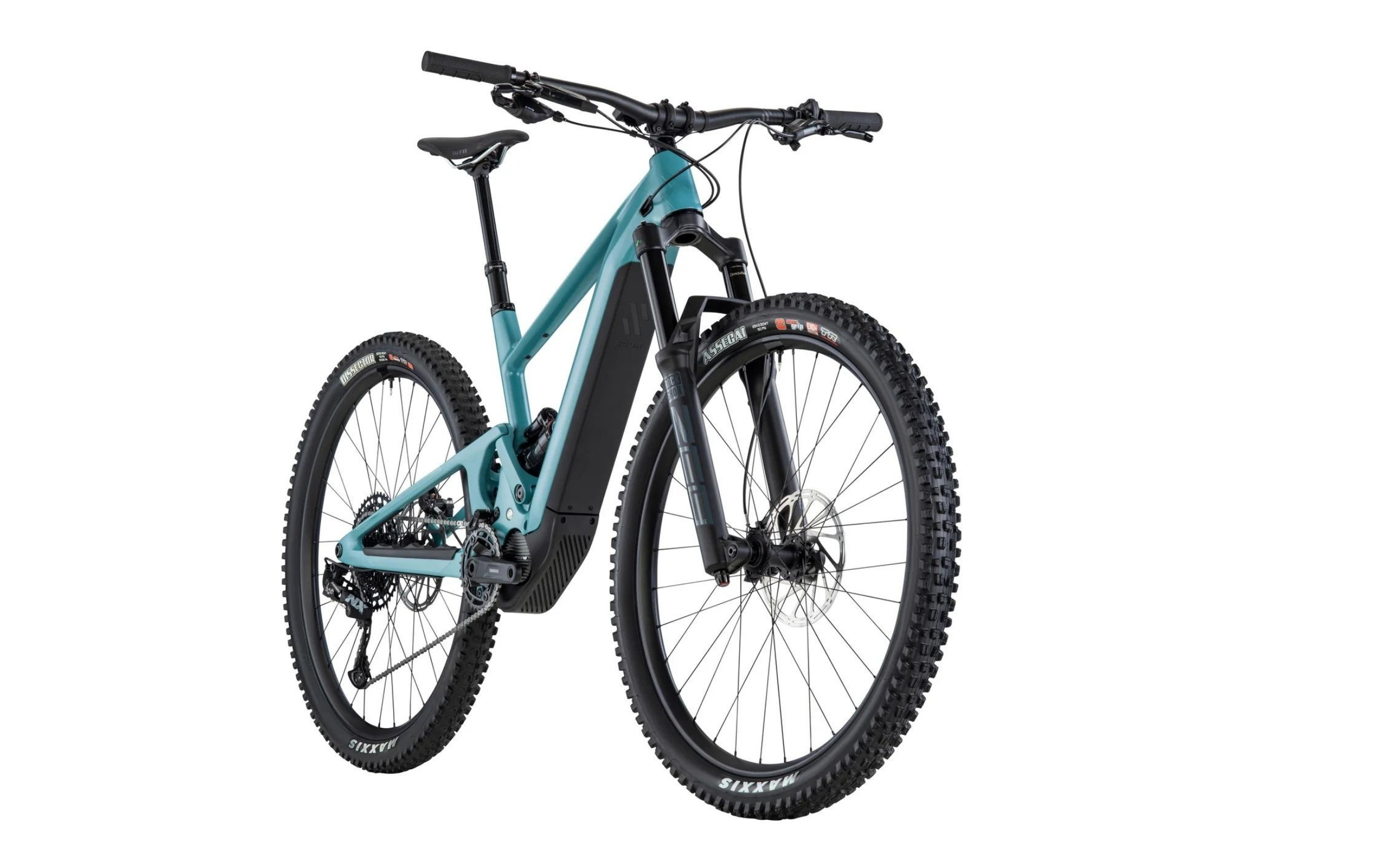

SCOR 4060 Z ST Carbon NX

Item number: 30005896

€6,399.00*

Prices incl. VAT plus shipping costs

Hurry up! Only one more 1 in stock.

Colour: blue steel

Frame size: S

Available immediately, with you in 2 - 5 working days
Fast delivery!
Convenient financing with easyCredit instalment purchase
Purchase on account
Pay only after 30 days further information

Spring travel

150 mm

Engine

Shimano EP801

Battery

720 Wh

Get ready for an endless loop

The 4060 Z ST has the same geometry as the 4060 ST, but comes with extra power. Thanks to the small, powerful Shimano EP8 motor and a 720 Wh battery, you can ride even the longest trail playlist. Drop into your favourite lines and combine the best single trails into one big tour - the Z 4060 ST gives your ride more power.

Geometry without compromise
A motor and a battery shouldn't compromise the riding experience, they should enhance it. To maintain the playful ride feel and dynamic characteristics, we use the geometry of our non-motorised bikes. Same experience, just with a power boost.

Powerhouse
The latest EP801 motor from Shimano packs a mighty 85 Nm of torque into a slim, 2.6 kg drive package. Compact dimensions and intelligent design keep the centre of gravity low, exactly where it should be.

Battery included
The compact Darfon 720Wh battery lets you ride further and play longer. Thanks to full service support from Shimano, you don't have to worry about technology and maintenance. All you have to think about is charging the battery for your next ride.

Carbon frame
Developed for dynamic riding behaviour, manufactured with precision. Carefully processed high-end carbon fibres ensure a frame that is light, stiff and robust enough for tough trail use - and can withstand the occasional bump, riding error or crash.

First-class suspension
Our Lower Link Activated Virtual Pivot kinematics in combination with durable Enduro Max bearings offer the best grip and progressive support when you go all out. The intelligent design ensures a precise, agile ride and is compatible with air shocks and coil shocks.

All the bells and whistles
Performance should not come at the expense of functionality. With space for a water bottle and mounts for additional equipment, you're ready for any adventure.

This bike arrives (almost) fully assembled. All you have to do is straighten the handlebars and attach the pedals.

Frame	SCOR 4060 Z full carbon frame \| Lower-Link Driven Instant Centre linkage \| 140 / 160mm rear travel \| Boost 148 \| SRAM UDH
Frame shape	Mountainbike
Material	Carbon
Gender	Unisex
Weight	approx. 22.5 kg
permissible total weight	130 kg
Fork	RockShox ZEB Select RC \| 150mm travel \| 44mm rake
Damper	RockShox Super Deluxe Select R Hydraulic Bottom Out \| 210x47.5mm
Manufacturer shift group	Sram
Rear derailleur	SRAM NX Eagle
Number of gears	1 x 12
Circuit type	Kettenschaltung
Crank handle	Shimano FC-EM600 \| 165 mm length \| 34T X-Sync Eagle chainring
Cassette	SRAM NX Eagle (PG-1230) \| 11-50T
Drive type	Kettenantrieb
Freewheel/coaster	Freilauf
Pedals included in the scope of delivery	nein
Rims	XDH-130 \| 32 spokes \| 6061-T6 alloy \| welded joint \| 30mm internal width \| tubeless ready
Hubs	XDH-130 \| 32 spokes \| Sealed cartridge bearings
Wheel size	29 Zoll
Tyres	Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) \| Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)
Motor manufacturer	Shimano
Engine	Shimano STEPS EP801
max. torque	85 Nm
Reach	up to 150 km
Support for	up to 25 km/h
Battery	720 Wh
Display	Shimano Display Unit SC-EM800
Brakes	SRAM Code R
Handlebars	SCOR Alloy Bar \| 31.8mm clamp \| 800mm wide \| 20mm rise \| 5° upsweep \| 9° backsweep
Seat post	X-Fusion Manic \| S 125mm \| M 150mm \| L / XL 170mm travel
Saddle	WTB Silverado Medium Steel SL
Stem	SCOR Alloy Bar \| 31.8mm clamp \| 800mm wide \| 20mm rise \| 5° upsweep \| 9° backsweep
Accessories/Miscellaneous	Charger included in the scope of delivery
